$549.99
$699.99
Save $150.00
Plug Type:
Model:
Quantity

ORTUR LU3-20A 20W

Laser Engraver and Cutter

Combines 4 diode laser beams to compress a finer beam and powerful energy.
Video Thumbnail

Cutting in One Pass

Universal Accessories for ORTUR & AUFERO

15mm Pine Cutting

10mm Pine Cutting

8mm Black Acrylic Cutting

Cutting in One Pass

The ultra-fine compressed light spot achieves top precision, and presents 100% detail for your creative ideas in 256 engraving greyscales.

Explore 380+ Colors on Stainless Steel

Different parameters carve out different colors, no longer limited to black and white.

Accessory Compatibility

Efficient Integrated Air Assist System

Built-in air tube cooperates with the included 50L air pump to reduce burn marks by 50% , and knob to adjust airflow.

Double Cooling Fans

With a powerful cooling system, the dual fans reach up to 10,000 rpm, improving the durability of the laser and ensuring a service life of up to 10,000 hours.

Airflow Guided Blinds

Air-guided blinds combined with built-in tubes that control the cooling airflow, help reduce dust buildup on the lenses and thus reduce wear and tear.

Quick Focus Stick

Equipped with quick focus stick for easy and convenient focus.


Laser Filtered Viewable Window

With a powerful cooling system, the dual fans reach up to 10,000 rpm, improving the durability of the laser and ensuring a service life of up to 10,000 hours.

LU3-20A VS LU2-10A

Laser Module

LU3-20A

LU2-10A

Focal Spot

0.08*0.08mm

0.05*0.1mm

Machine Power

120W

80W

Laser Electric Power

80W

40W

Power Input

24V 4A

24V 2A

Maximum Luminous Power

20W

10W

Laser Technology

Spatial Compression

Optical Compression

Working Area

400*380 mm (15.75*14.96 inches)

400*400 mm (15.75*15.75 inches)

Extended Area

400*830mm(15.75*32.68 inches)

400*850mm(15.75*33.46 inches)

Exhaust Nozzle

✅(With Free Air Pump)

✅

Focal Length

56.5mm

50mm

Focusing Mode

Manual

Manual

Wavelength

450±5nm

450±5nm

Lifetime

>10,000H

>10,000H

Maximum Speed

20,000mm/min

20,000mm/min

Cleaning Frequency

Every 50 hours

Every 50 hours

Laser Module Cleaning Method

Cotton wetted with alcohol and wipe off the dust and dirt on the surface of the lens, wait for the alcohol to evaporate

Cotton wetted with alcohol and wipe off the dust and dirt on the surface of the lens, wait for the alcohol to evaporate

Security Function

Emergency Button、Safety Lock、 Program Operation Watchdog、 Exposure Time Limit、USB Connection Monitor、Tilt Motion Detection、Voltage & Current Safety Control System

Emergency Button、Safety Lock、 Program Operation Watchdog、 Exposure Time Limit、USB Connection Monitor、Tilt Motion Detection、Voltage & Current Safety Control System

Customer Reviews

Based on 3 reviews
100%
(3)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
R
Roy R.

Installed the 20w upgrade 2 days ago. I've been busy cutting new material test sheets and even completed a couple of projects. Very pleased with the results and how much quicker I can cut and engrave.

K
Kristaps L

Good quality laser Modul. Worth the money . Thx Ortur

User picture User picture User picture
m
moctezuma f

Great laser module, my projects now are super easy and fast, great product ortur...

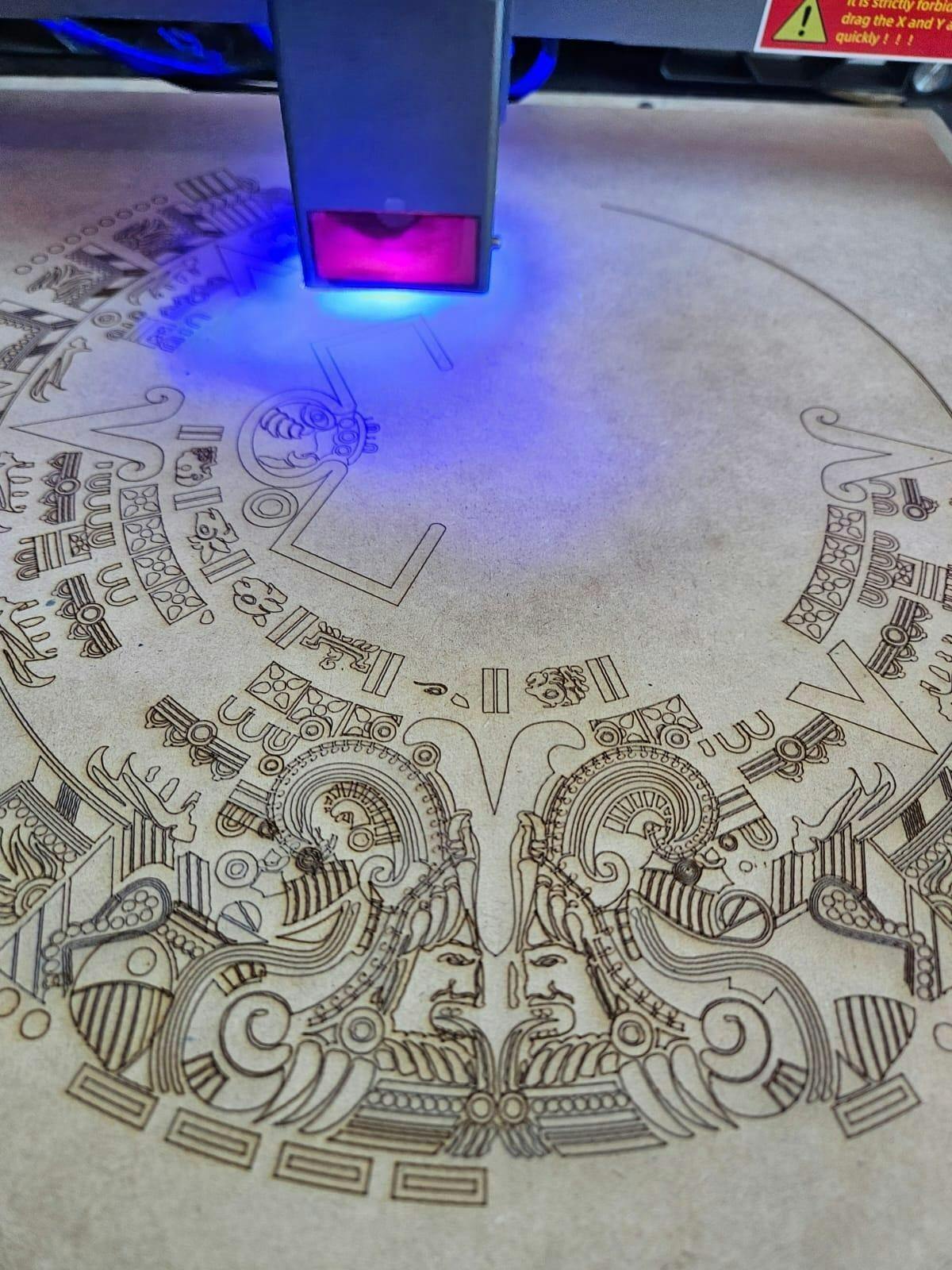

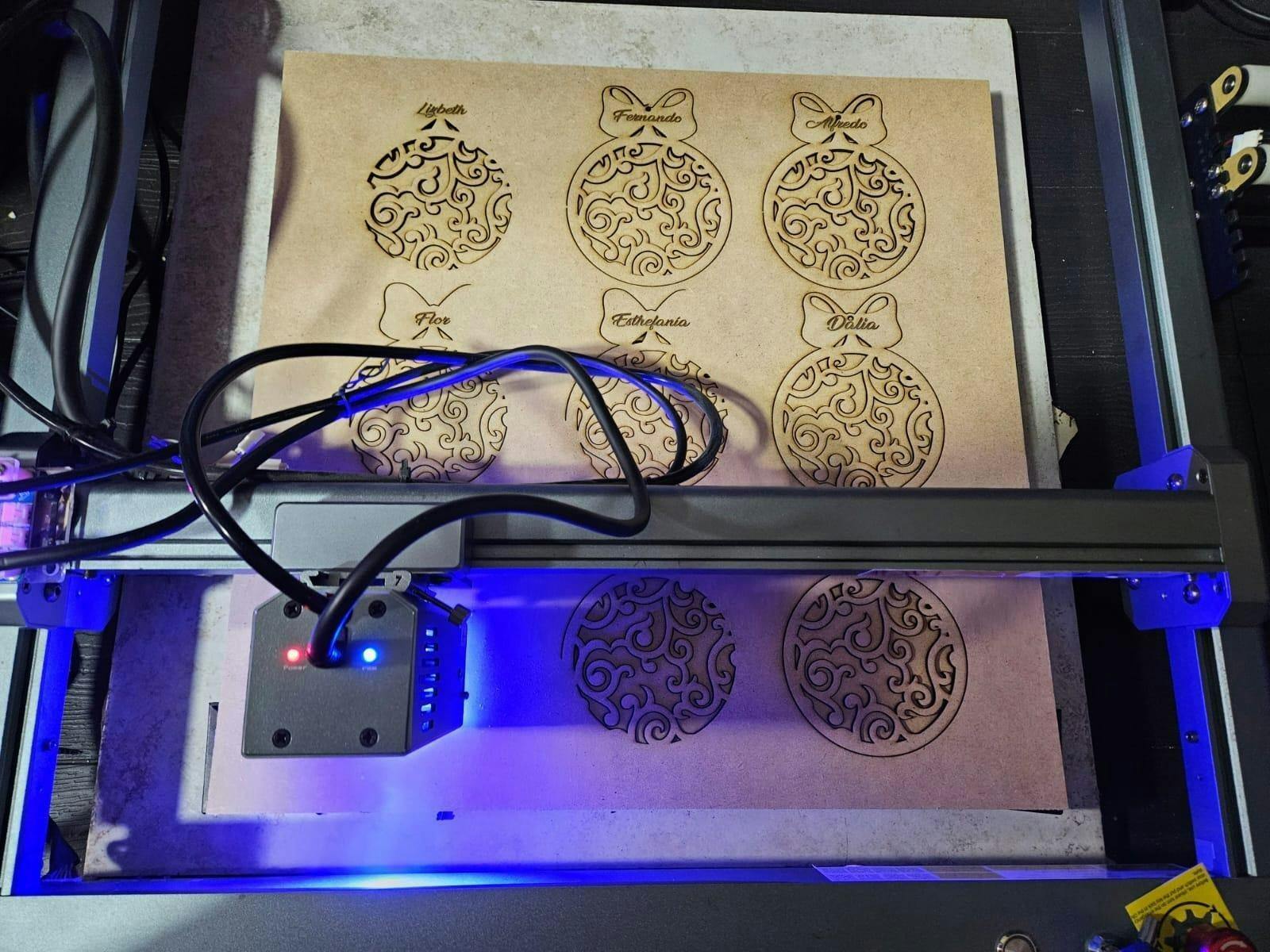

User picture User picture User picture User picture User picture
