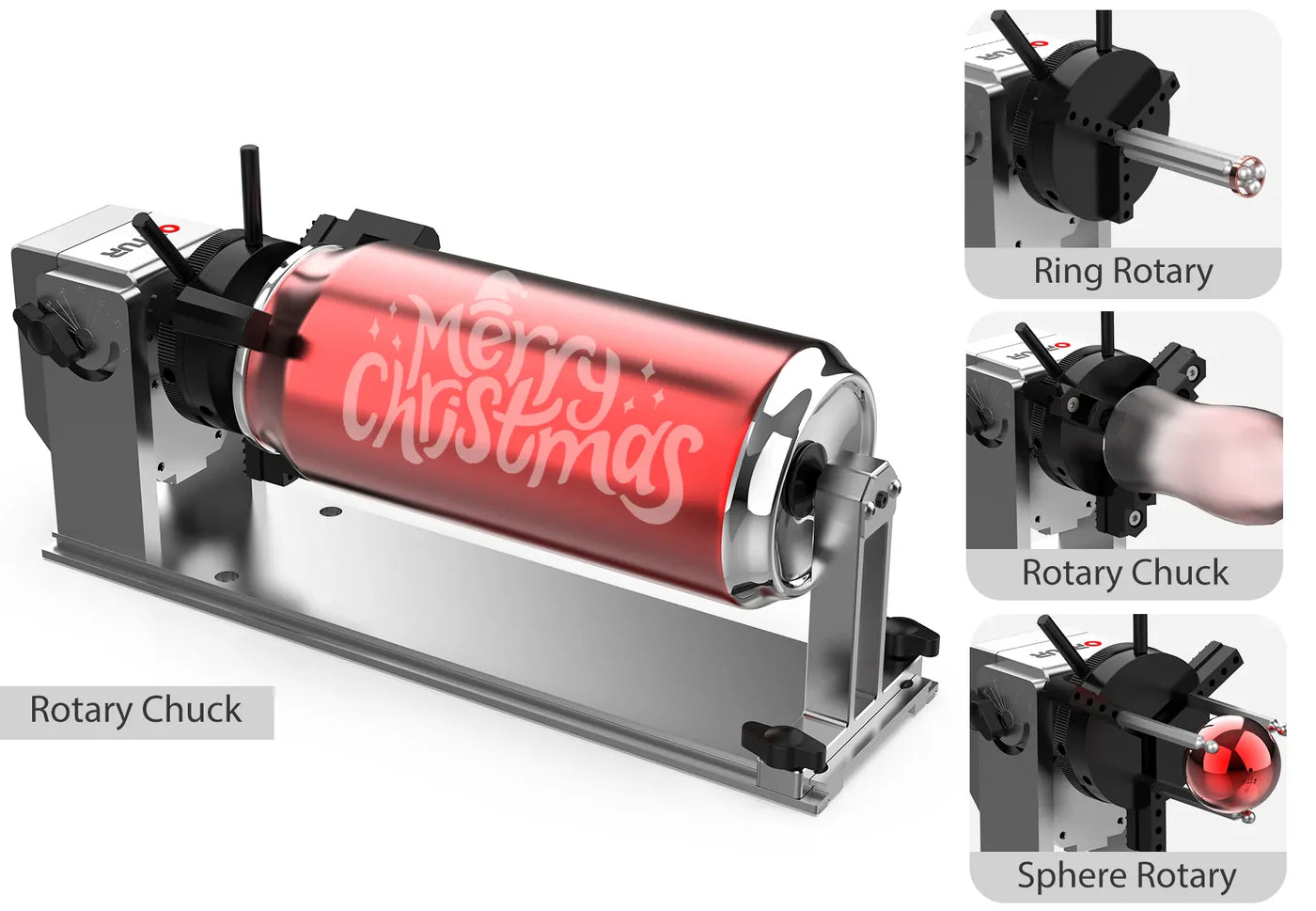

Multi-mode Function

Ortur Y-axis rotary chuck can not only be used for chuck rotary and ring rotary, but also sphere rotary. Multiple modes can use more than 90% cylindrical and even irregular objects to meet all your needs.

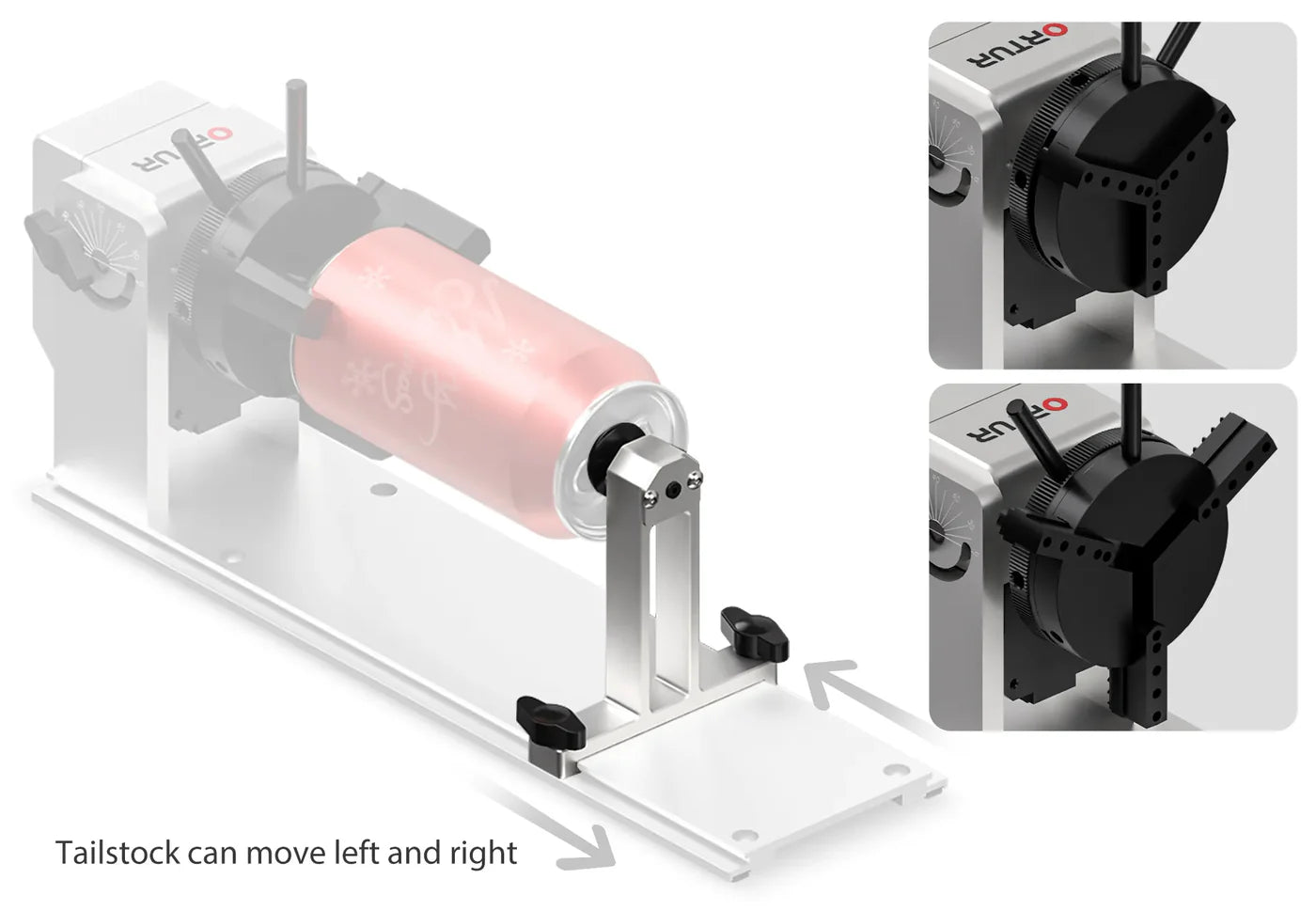

Adjustable Stable Design

One-piece frame structure design, the engraving
speed can still maintain ultra-high precision and stability at 360°/sec.

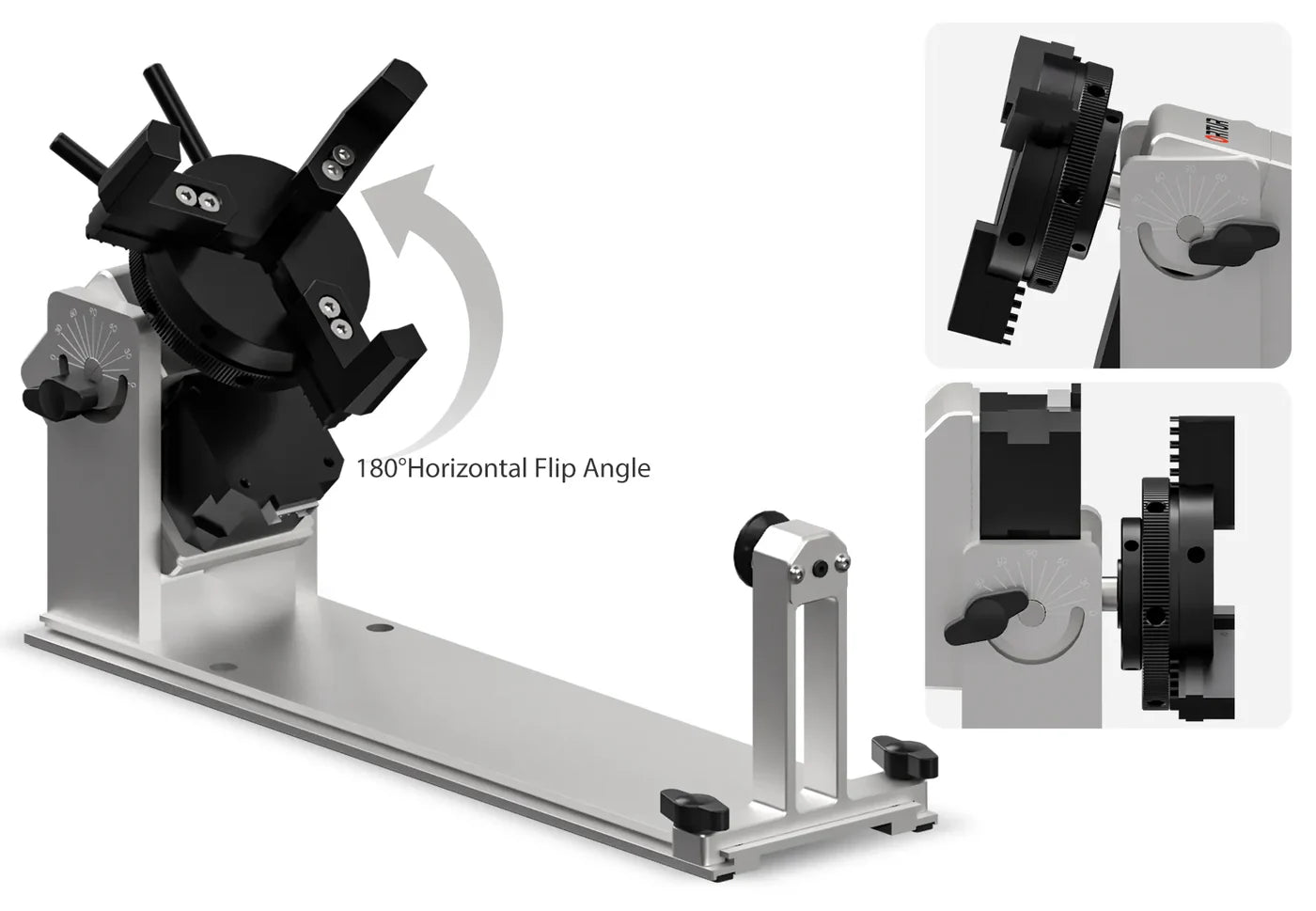

It supports 180° angle adjustment and 360° rotation engraving of various beverage cans, baseballs, goblets, wine bottles,
and other cylindrical and irregular items.

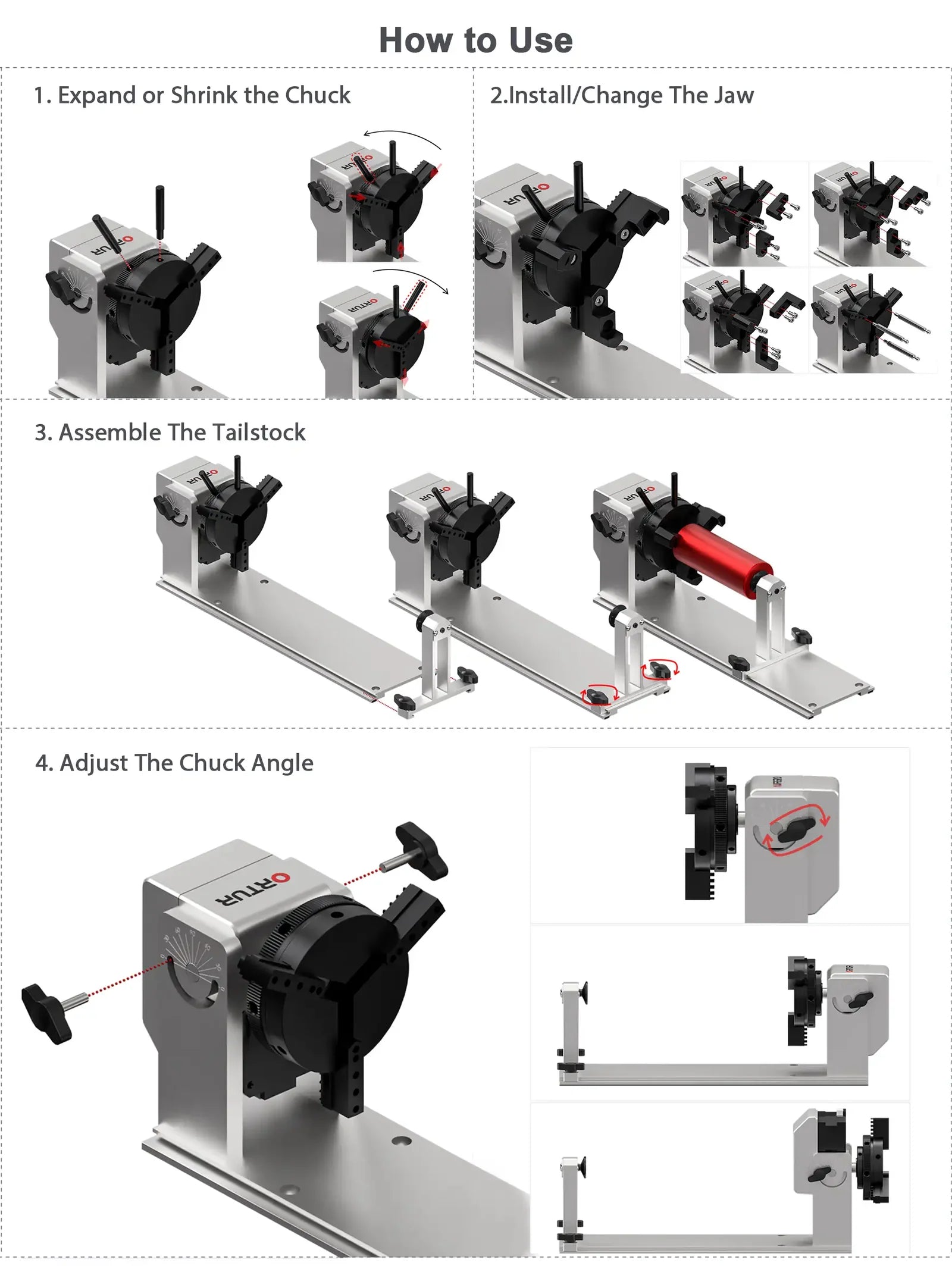

Adjusted Diameter

Extend and shrink the sizethat you want by scrolling the chuck or assemble the jaw on different holes.Ortur Y-axis rotary chuck engraving diameter range is 1 to 120mm, Sphere is 25 to 150mm and the ring is 11 to 100mm,
can use your creativity on most cylindrical objects.

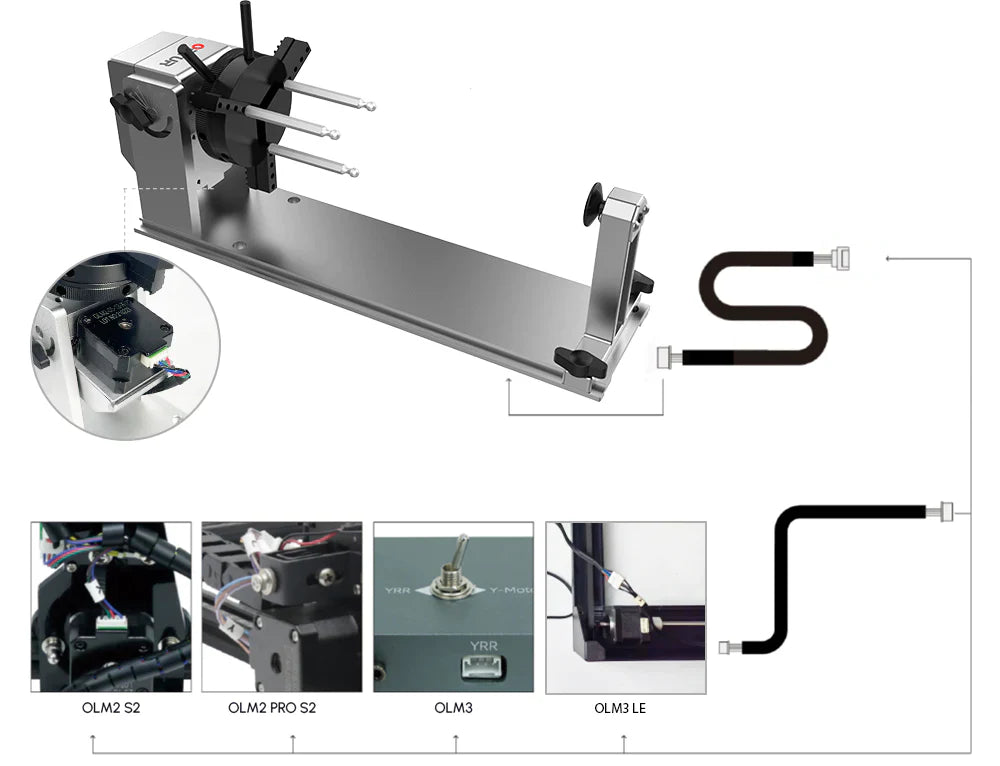

Connecting the Machine

No installation required, easy to use,
direct power supply and control through the laser engraver.

Wide Compatibility

Compatible with Ortur & Aufero's laser engraving machines, and also compatible with most laser engraving machines on the market. The Y-axis Rotary Chuck is also compatible with various software, such as Laser Explorer, LaserGRBL or LightBurn, supports Windows from XP to10 / Mac OS / Linux.

Assembly Manual of Optional Parts -axis Lifting Device
